Contact Auto Update

User can automatically update contacts in external CRM or database systems after AI calls complete using Callab’s webhook feature. This enables real-time synchronization of call outcomes and contact data.

Contact auto-update uses Callab’s webhooks to send call data and outcomes to external systems immediately after calls end.

What is Contact Auto Update?

Contact auto-update automatically syncs call data back to external systems: How It Works:

AI agent completes call
Call outcomes extracted
Webhook triggered automatically
Data sent to external API
CRM contact updated in real-time

Benefits:

Real-time CRM synchronization
Automatic contact updates
Call outcome tracking
No manual data entry
Bi-directional data flow

Use Cases:

Update lead status after sales calls
Sync call notes to CRM
Track appointment bookings
Update contact information
Record call outcomes

Webhook vs Integration

Webhooks (Push):

Callab pushes data to external system
Triggered by events (call ended, outcome extracted)
Real-time updates
Best for updating external systems

Integrations (Pull):

Callab pulls data from external system
Triggered by schedule or webhook
Batch processing
Best for importing contacts

Use both together: Integrations to import contacts, Webhooks to update them after calls.

Contact Auto-Update Flow

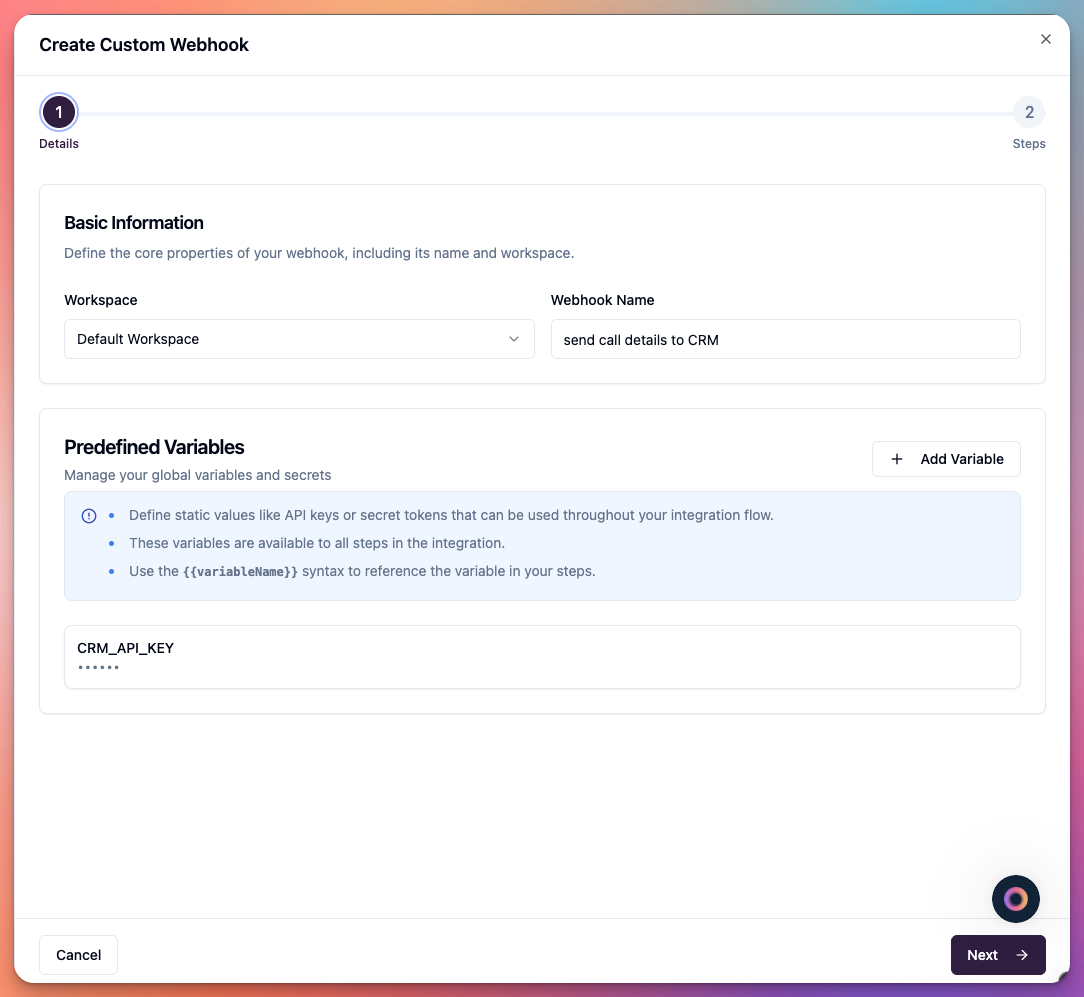

Create Webhook

User can create webhook to update contacts: Webhook Configuration: Webhook Name:

Enter descriptive name
Example: “Update HubSpot Leads”
Example: “Sync Call Outcomes to Salesforce”

Webhook URL:

Enter your API endpoint
Format: https://your-api.com/webhook
Must be HTTPS (secure)
Receives POST requests from Callab

Authentication: User can configure authentication: API Key Authentication:

Header: Authorization
Value: Bearer YOUR_API_KEY

Custom Headers:

Header: X-API-Key
Value: YOUR_SECRET_KEY

Basic Authentication:

Header: Authorization
Value: Basic base64(username:password)

Trigger Events: User can select which events trigger webhook: Call Started:

Fires when call begins
Contains caller information
Initial contact data

Call Ended:

Fires when call completes
Contains call duration
Final call status
Recording URL

Call Outcome Extracted:

Fires after outcome extraction
Contains extracted data fields
Post-call analysis results
Agent-defined outcomes

Select Data Fields: User can choose which fields to send: Contact Information:

Contact ID
Phone number
First name
Last name
Email
Company
Custom fields

Call Details:

Call ID
Campaign ID
Agent ID
Call duration
Call status
Start timestamp
End timestamp

Call Content:

Recording URL
Transcript text
Summary

Extracted Outcomes:

All outcome fields
Custom extracted data
Agent variables

Webhook Payload Structure

Complete Payload Example:

{
  "event": "call_outcome_extracted",
  "timestamp": "2025-11-17T10:30:00Z",
  "workspace_id": "ws_abc123",

  "campaign": {
    "id": "camp_xyz789",
    "name": "Sales Outreach",
    "type": "outbound"
  },

  "contact": {
    "id": "cont_123456",
    "phone": "+14085551234",
    "first_name": "John",
    "last_name": "Smith",
    "email": "john@techcorp.com",
    "company": "Tech Corp",
    "category": "Lead",
    "tags": ["Interested", "Enterprise"],
    "custom_fields": {
      "crm_id": "lead_123",
      "source": "website"
    }
  },

  "call": {
    "id": "call_abc789",
    "status": "completed",
    "duration": 180,
    "start_time": "2025-11-17T10:27:00Z",
    "end_time": "2025-11-17T10:30:00Z",
    "recording_url": "https://...",
    "transcript": "Full call transcript...",
    "summary": "Customer expressed interest..."
  },

  "outcomes": {
    "interested": true,
    "product": "Enterprise Plan",
    "budget": "$50,000",
    "decision_timeline": "Q1 2026",
    "next_action": "Schedule demo",
    "appointment_booked": true,
    "appointment_date": "2025-11-20T14:00:00Z",
    "objections": ["Price concerns"],
    "sentiment": "Positive"
  },

  "agent": {
    "id": "agent_xyz",
    "name": "Sales Agent"
  }
}

Update CRM Contact Example

Webhook Endpoint Implementation: User implements endpoint to receive webhook and update CRM:

HubSpot Update Example

// Express.js webhook endpoint
app.post('/webhook/callab-outcomes', async (req, res) => {
  const { contact, call, outcomes } = req.body;

  // Extract CRM ID from Callab contact
  const hubspotId = contact.custom_fields.crm_id;

  // Update HubSpot contact
  await hubspot.contacts.update(hubspotId, {
    properties: {
      // Update call status
      last_call_date: call.end_time,
      last_call_duration: call.duration,
      call_outcome: call.status,

      // Update extracted outcomes
      product_interest: outcomes.product,
      budget_range: outcomes.budget,
      decision_timeline: outcomes.decision_timeline,
      next_action: outcomes.next_action,

      // Update lead status based on interest
      lifecyclestage: outcomes.interested ? 'qualifiedlead' : 'subscriber',

      // Add call notes
      last_call_notes: call.summary,

      // Update appointment if booked
      appointment_scheduled: outcomes.appointment_booked,
      appointment_date: outcomes.appointment_date
    }
  });

  // Respond with success
  res.status(200).json({ success: true });
});

Salesforce Update Example

app.post('/webhook/callab-outcomes', async (req, res) => {
  const { contact, call, outcomes } = req.body;

  const salesforceId = contact.custom_fields.crm_id;

  // Update Salesforce lead
  await salesforce.sobject('Lead').update({
    Id: salesforceId,

    // Call information
    Last_Call_Date__c: call.end_time,
    Call_Duration__c: call.duration,
    Recording_URL__c: call.recording_url,

    // Outcomes
    Product_Interest__c: outcomes.product,
    Budget__c: outcomes.budget,
    Timeline__c: outcomes.decision_timeline,

    // Lead status
    Status: outcomes.interested ? 'Qualified' : 'Nurturing',

    // Activity
    Description: `Call Summary: ${call.summary}\n\nOutcomes: ${JSON.stringify(outcomes)}`
  });

  // Create task for next action
  if (outcomes.next_action) {
    await salesforce.sobject('Task').create({
      WhoId: salesforceId,
      Subject: outcomes.next_action,
      Status: 'Not Started',
      Priority: outcomes.interested ? 'High' : 'Normal',
      ActivityDate: outcomes.appointment_date || new Date()
    });
  }

  res.status(200).json({ success: true });
});

Generic CRM Update Example

app.post('/webhook/callab-outcomes', async (req, res) => {
  const { contact, call, outcomes, event } = req.body;

  try {
    // Get CRM ID from contact
    const crmId = contact.custom_fields.crm_id;

    // Build update payload
    const updateData = {
      // Contact info (in case changed during call)
      first_name: contact.first_name,
      last_name: contact.last_name,
      email: contact.email,

      // Call metadata
      last_contacted: call.end_time,
      last_call_duration: call.duration,
      total_calls: contact.custom_fields.total_calls + 1,

      // Outcomes
      ...outcomes,

      // Call content
      last_call_transcript: call.transcript,
      last_call_recording: call.recording_url
    };

    // Update CRM via API
    await axios.patch(
      `https://your-crm-api.com/contacts/${crmId}`,
      updateData,
      {
        headers: {
          'Authorization': `Bearer ${CRM_API_KEY}`,
          'Content-Type': 'application/json'
        }
      }
    );

    // Log success
    console.log(`Updated CRM contact ${crmId} from call ${call.id}`);

    // Acknowledge webhook
    res.status(200).json({
      success: true,
      contact_id: crmId
    });

  } catch (error) {
    console.error('Webhook processing error:', error);

    // Return error but acknowledge receipt
    // (prevents retry storms)
    res.status(200).json({
      success: false,
      error: error.message
    });
  }
});

Webhook Security

Verify Webhook Authenticity: User should verify webhooks come from Callab: 1. HTTPS Only:

Always use HTTPS endpoint
Never accept HTTP webhooks
Ensures encrypted transmission

2. Webhook Signature Verification:

const crypto = require('crypto');

function verifyWebhookSignature(payload, signature, secret) {
  const hmac = crypto.createHmac('sha256', secret);
  const digest = hmac.update(JSON.stringify(payload)).digest('hex');
  return crypto.timingSafeEqual(
    Buffer.from(signature),
    Buffer.from(digest)
  );
}

app.post('/webhook', (req, res) => {
  const signature = req.headers['x-callab-signature'];
  const isValid = verifyWebhookSignature(
    req.body,
    signature,
    WEBHOOK_SECRET
  );

  if (!isValid) {
    return res.status(401).json({ error: 'Invalid signature' });
  }

  // Process webhook...
});

3. IP Whitelisting:

Restrict webhook endpoint to Callab IPs
Contact support for current IP ranges
Configure firewall rules

4. Rate Limiting:

Implement rate limiting
Prevent abuse
Set reasonable limits

Webhook Best Practices

Implementation:

Respond quickly (within 5 seconds)
Return 200 status immediately
Process data asynchronously
Don’t wait for CRM API calls
Use job queue for processing

Error Handling:

Always return 200 (even on error)
Log errors for investigation
Implement retry logic
Handle missing fields gracefully
Validate data before processing

Example Async Processing:

const queue = require('bull');
const webhookQueue = new queue('webhook-processing');

// Webhook endpoint - respond immediately
app.post('/webhook', async (req, res) => {
  // Add to queue
  await webhookQueue.add(req.body);

  // Respond immediately
  res.status(200).json({ received: true });
});

// Process queue asynchronously
webhookQueue.process(async (job) => {
  const { contact, call, outcomes } = job.data;

  // Update CRM (can take time)
  await updateCRM(contact, call, outcomes);

  return { success: true };
});

Data Validation:

function validateWebhookPayload(payload) {
  const required = ['event', 'timestamp', 'contact', 'call'];

  for (const field of required) {
    if (!payload[field]) {
      throw new Error(`Missing required field: ${field}`);
    }
  }

  // Validate contact has CRM ID
  if (!payload.contact.custom_fields?.crm_id) {
    throw new Error('Contact missing CRM ID');
  }

  return true;
}

Monitoring:

Log all webhook receipts
Track processing success rate
Monitor CRM update failures
Alert on errors
Review webhook latency

Complete Integration Flow

Bi-directional CRM Sync: Import Contacts (Integration):

Integration runs every 5 minutes
Fetches new leads from CRM
Creates contacts in Callab
Adds CRM ID to custom fields
Campaign picks up contacts

Call Contacts (Campaign):

Outbound campaign runs
AI agent calls imported contacts
Has conversation
Extracts call outcomes
Call completes

Update CRM (Webhook):

Call outcome extracted
Webhook triggered
Data sent to your endpoint
Endpoint updates CRM
Lead status synced

Complete Flow:

CRM New Lead Created
     ↓
Integration Imports to Callab
     ↓
Campaign Calls Contact
     ↓
AI Has Conversation
     ↓
Call Outcomes Extracted
     ↓
Webhook Sends to Your API
     ↓
Your API Updates CRM
     ↓
Lead Status Updated in CRM
     ↓
(Repeat for next lead)

Outcome Mapping Examples

Lead Qualification:

function mapOutcomesToCRMStatus(outcomes) {
  // Qualified lead
  if (outcomes.interested && outcomes.budget && outcomes.decision_timeline) {
    return {
      status: 'Qualified',
      priority: 'High',
      next_step: 'Schedule demo'
    };
  }

  // Interested but not ready
  if (outcomes.interested && !outcomes.decision_timeline) {
    return {
      status: 'Nurturing',
      priority: 'Medium',
      next_step: 'Follow up in 30 days'
    };
  }

  // Not interested
  if (!outcomes.interested) {
    return {
      status: 'Disqualified',
      priority: 'Low',
      next_step: 'Archive'
    };
  }

  // No clear outcome
  return {
    status: 'Attempted',
    priority: 'Medium',
    next_step: 'Retry call'
  };
}

Appointment Tracking:

function syncAppointment(outcomes, contact) {
  if (outcomes.appointment_booked) {
    return {
      calendar_event: {
        title: `Demo with ${contact.first_name} ${contact.last_name}`,
        start: outcomes.appointment_date,
        duration: 60,
        attendees: [contact.email],
        description: outcomes.appointment_notes
      },
      crm_update: {
        status: 'Meeting Scheduled',
        meeting_date: outcomes.appointment_date
      }
    };
  }
  return null;
}

Troubleshooting

Webhook not firing:

Is webhook active (not paused)?
Are correct events selected?
Is campaign using webhook?
Check webhook logs in dashboard
Verify call completed successfully

Endpoint not receiving data: CRM not updating: Timeout errors:

Respond to webhook within 5 seconds
Process data asynchronously
Use job queue for heavy operations
Don’t wait for CRM API in webhook handler
Return 200 immediately

Data validation errors:

Handle missing fields gracefully
Check outcome field names match
Verify data types correct
Validate before sending to CRM
Log validation errors

Monitoring and Logging

Webhook Dashboard: User can monitor webhooks in Callab dashboard: Metrics Available:

Total webhook deliveries
Successful deliveries
Failed deliveries
Average response time
Retry attempts

Webhook Logs:

Request timestamp
Response status
Response time
Payload sent
Error messages
Retry history

Server-Side Logging:

const logger = require('winston');

app.post('/webhook', async (req, res) => {
  const startTime = Date.now();

  try {
    // Log receipt
    logger.info('Webhook received', {
      event: req.body.event,
      call_id: req.body.call.id,
      contact_id: req.body.contact.id
    });

    // Process webhook
    await processWebhook(req.body);

    // Log success
    const duration = Date.now() - startTime;
    logger.info('Webhook processed successfully', {
      call_id: req.body.call.id,
      duration_ms: duration
    });

    res.status(200).json({ success: true });

  } catch (error) {
    // Log error
    logger.error('Webhook processing failed', {
      call_id: req.body.call?.id,
      error: error.message,
      stack: error.stack
    });

    // Still return 200 to prevent retries
    res.status(200).json({
      success: false,
      error: error.message
    });
  }
});

Next Steps

After setting up contact auto-update:

Test Webhook - Make test call and verify CRM updates
Monitor Logs - Check webhook delivery logs
Verify CRM - Confirm data appears correctly in CRM
Optimize Mapping - Refine outcome field mappings
Add Automation - Create CRM workflows based on outcomes

Contact Management - Contact import and management
Contact Auto Import - Import contacts from CRM
Setup Outbound Agent - Configure campaigns
Setup Inbound Agent - Inbound webhook configuration
Integrations - General integration builder

Start with “Call Outcome Extracted” event as it contains all call data plus extracted outcomes in a single webhook.

Important: Always Respond with 200Your webhook endpoint must respond with 200 status code within 5 seconds, even if processing fails. Process data asynchronously to avoid timeouts.

Getting Started

Build

Test

Deploy

Billing and Support

Legal

What is Contact Auto Update?

Webhook vs Integration

Contact Auto-Update Flow

Create Webhook

Webhook Payload Structure

Update CRM Contact Example

HubSpot Update Example

Salesforce Update Example

Generic CRM Update Example

Webhook Security

Webhook Best Practices

Complete Integration Flow

Outcome Mapping Examples

Troubleshooting

Monitoring and Logging

Next Steps

Getting Started

Build

Test

Deploy

Billing and Support

Legal

​What is Contact Auto Update?

​Webhook vs Integration

​Contact Auto-Update Flow

​Create Webhook

​Webhook Payload Structure

​Update CRM Contact Example

​HubSpot Update Example

​Salesforce Update Example

​Generic CRM Update Example

​Webhook Security

​Webhook Best Practices

​Complete Integration Flow

​Outcome Mapping Examples

​Troubleshooting

​Monitoring and Logging

​Next Steps

​Related Documentation

What is Contact Auto Update?

Webhook vs Integration

Contact Auto-Update Flow

Create Webhook

Webhook Payload Structure

Update CRM Contact Example

HubSpot Update Example

Salesforce Update Example

Generic CRM Update Example

Webhook Security

Webhook Best Practices

Complete Integration Flow

Outcome Mapping Examples

Troubleshooting

Monitoring and Logging

Next Steps

Related Documentation
